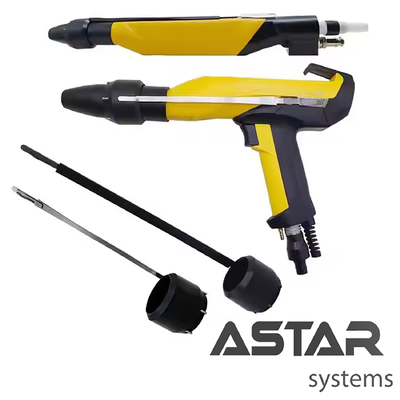

GM03 Manual Powder Gun with Super Corona Ring
Engineered for superior performance and operational efficiency in industrial powder coating applications, this automatic tribo gun delivers exceptional results with minimal maintenance requirements.
Product Overview
Designed with minimal replacement parts for easy cleaning and simple maintenance, this powder coating gun reduces operational costs while ensuring reliability and long service life. The system features an extendable body design with tube and click connections for versatile applications.
Applications
This compact automatic powder gun incorporates advanced powder coating technology, offering high performance for machine, reciprocator, or robot-mounted applications. Its lightweight design minimizes energy consumption while maintaining optimal performance.
Technical Specifications
| Product Name |
Super Corona |
| Brand |
ASTAR |
| Model Number |
1008165 |
| Size |
Standard |
| Company Capability |
Independently Produced |
| Usage |
Powder Coating |
Product Images
Spare Parts List
| Item |
Description |
Part Number |
| A |
GM03 manual powder gun - complete negative polarity, incl. gun cable - 6 m, rinsing air hose - 6 m, flat jet nozzle, brush and parts kit, without powder hose |
1008 070 |
| A |
GM03 manual powder gun - complete positive polarity, incl. gun cable - 6 m, rinsing air hose - 6 m, flat jet nozzle, brush and parts kit, without powder hose |
1008 073 |
| B |
Manual powder gun shaft GM03 (incl. cascade) with various cable options |
Multiple |
| 1 |
Gun body |
1007 220 |
| 2 |
Cascade - complete, negative polarity |
1007 231 |
| 2 |
Cascade - complete, positive polarity |
1007 232 |
| 3 |
Print holder - complete (incl. pos. 3.1) |
1007 216 |
| 3.1 |
Screw - M2.5x12 mm |
1007 350 |
| 4 |
End plate with hook |
1007 217 |
| 5 |
Grip - complete (incl. pos. 5.1 and 5.2) |
1007 961 |
| 5.1 |
Grub screw - M3x8 mm |
1008 157 |
| 5.2 |
Grip sealing |
1007 633 |
| 6 |
Trigger - complete |
1007 213 |
| 7 |
Trigger cover |
1007 212 |
| 8 |
Countersunk-head screw - M4x6 mm |
1000 845 |
| 9 |

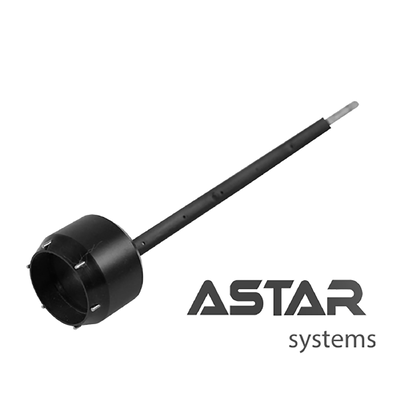

SuperCorona connection |
1007 238 |
| 10 |
Gun cable 2 m - complete |
1007 963 |
| 10 |
Gun cable 6 m - complete |
1007 964 |
| 10 |
Gun cable 12 m - complete |
1007 965 |
| 11 |
Rinsing air connection |
1000 804 |
| 11.1 |
Rinsing air hose |
100 854* |
| 12 |
Powder tube - complete |
1007 958 # |
| 13 |
Compression spring |
1001 488 |
| 14 |
Clip ring |
1007 960 |
| 15 |
Hose connection Ø 11-12 mm - complete (incl. pos. 15.1) |
1001 340 # |
| 15 |
Hose connection Ø 9-10 mm - complete (incl. pos. 15.1) |
1002 030 # |
| 15.1 |
O-ring for pos. 15 |
1000 822 # |
| 18 |
Cascade space gasket |
1007 635# |
Key Advantages
- Premium materials and reliable technology
- Sturdy construction for extended service life
- Excellent quality with competitive pricing
- Easy installation and maintenance
Packaging
Paper box packaging for secure transportation and storage.
