商品の詳細:
|
| Name: | High voltage cascade | Type: | Automatic |
|---|---|---|---|
| Application: | PG 1 Automatic Powder Gun | Rated input voltage: | 10 V |
| Frequency: | 17 kHz | Rated output voltage: | 98 kV |
| Polarity: | Negative (Option - positive) | Function: | High-voltage generation |
| Maximum output current: | 100 µA | Warranty: | 1 year |
| ハイライト: | automatic powder gun spare parts,high voltage powder coating gun,Gema cascade spare parts |
||

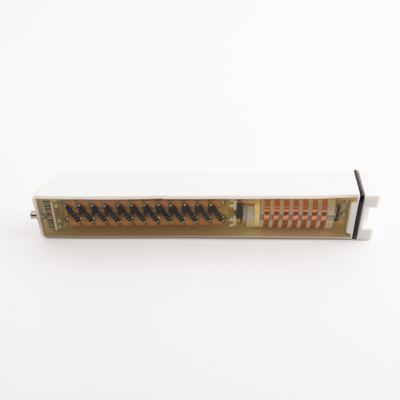

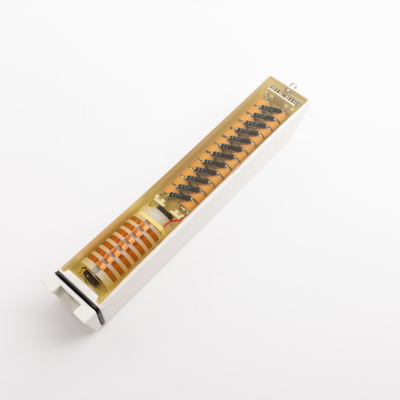

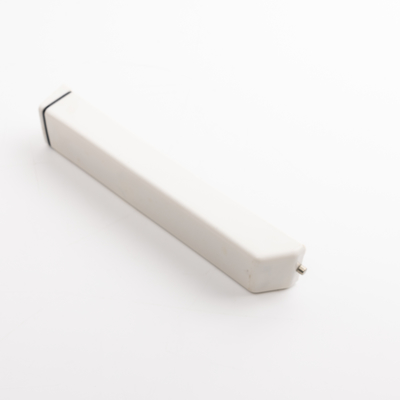

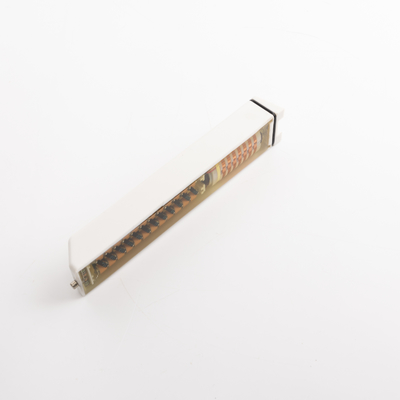

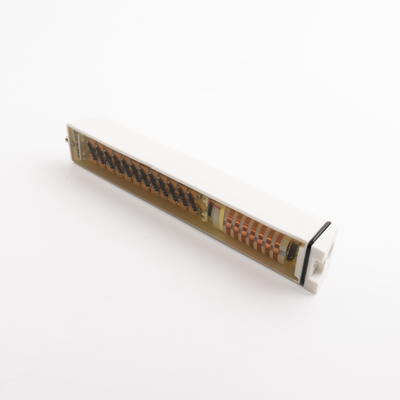

Pg 1 Gema Spare Parts Automatic Powder Gun Cascade High Voltage
Introduction
The voltage generator module (control module) of the PGC or OptiTronic control module supplies high-frequency low-voltage of approximately 10 Veff.This voltage is fed through the gun cable and the gun connector to the high-voltage cascade. In the cascade this low voltage is stepped up.
This primary high-voltage is subse quently rectified and multiplied in several stages in the cascade until the required high voltage is attained. The high-voltage is then fed from the spray nozzle to the electrode
Application
PG 1 Automatic Powder Gun Cascade
Quick Details
|
Name
|
High voltage cascade | Type | Automatic |
|
Voltage
|
10V | Polarity | Negative or positive) |
| Application | Gema PG1 Powder Gun | Rated input voltage | 10 V |
| Function | High-voltage generation | Rated output voltage | 98 kV |
| Maximum output current | 100 µA | Warranty | 1 year |
Advantages and selling points
1. Original quality
2. Stable performance
3. Long working life
4. Good after sale service
Package
Paper box package
Company introduction
Astar Machinery Co., Ltd. is a comprehensive service in production, R&D; and sales, operates mainly in electrostatic spraying equipment, including electrostatic dust elimination equipment; electrostatic flocking machine, electrostatic powder spraying machine, electrostatic liquid spray machine, electrostatic spraying gun, high voltage module, circuit board, powder barrel, powder tube, Hv cable, reciprocator, spraying room, control cabinet, oven, oven, vibration sieve, the wind leaching room, supply Gema, KCI, Wagner accessories, professional wholesale gun shell, venturi tube, powder pump, deflector, nozzle, electrode holder and other products.
